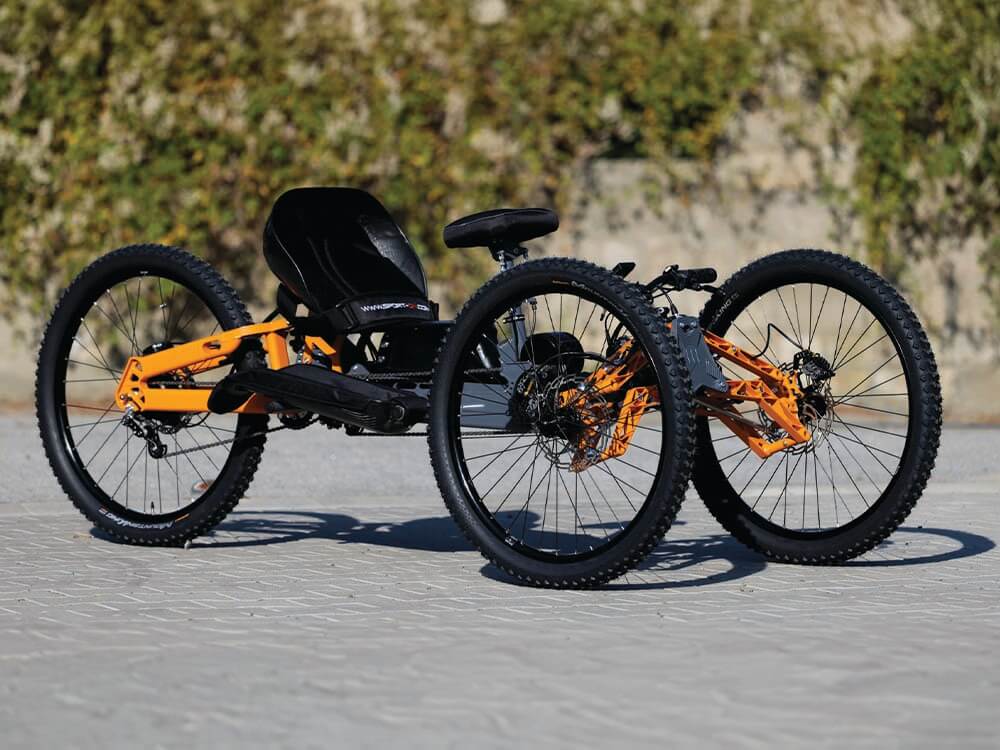

Explorer Handcycle
The Explorer handcycle offers unmatched opportunities for people with disabilities to enjoy mountain biking and hiking.
Designed for extreme off-road conditions, it allows access to previously unreachable places like mountains, trails, beaches, and bike parks. One of Sporton’s handbikes even reached the summit of Kilimanjaro, Africa’s highest peak.
The Explorer boasts full independent suspension, hydraulic disc brakes on all three wheels, a Schlumpf Mountain-Drive transmission, and a wide range of gears from 16 to 28. Its shift system allows gear changes while stationary. A standout feature is its dual steering: a traditional handlebar for fast descents and a chest steering system for straight-line travel and small turns while pedalling. The Explorer is also available with an electric assist.
For more information contact Adaptive Concepts call 0408 571 190 or complete the enquiry form below.
Handcycle Options:
- 26″ or 27.5″ SPORT-ON carbon wheels
- Front lights
- Electric assist 500W
- Main battery
- 27.5″+ aluminium wheels
- Rear lights
- Electric assist 750W
- Safety belt
- 27.5”+ carbon wheels
- Bottle cage
- Spare battery
| Component | Specification |
|---|---|
| Frame | 6082 aluminium alloy |
| Front/Rear suspension | CNC machined |
| Front shock absorbers | Rock Shox Monarch XX 200mm |
| Rear shock absorber | Rock Shox Vivid 222mm spring |
| Steering system | adjustable control arms, pull rods and steering knuckles |

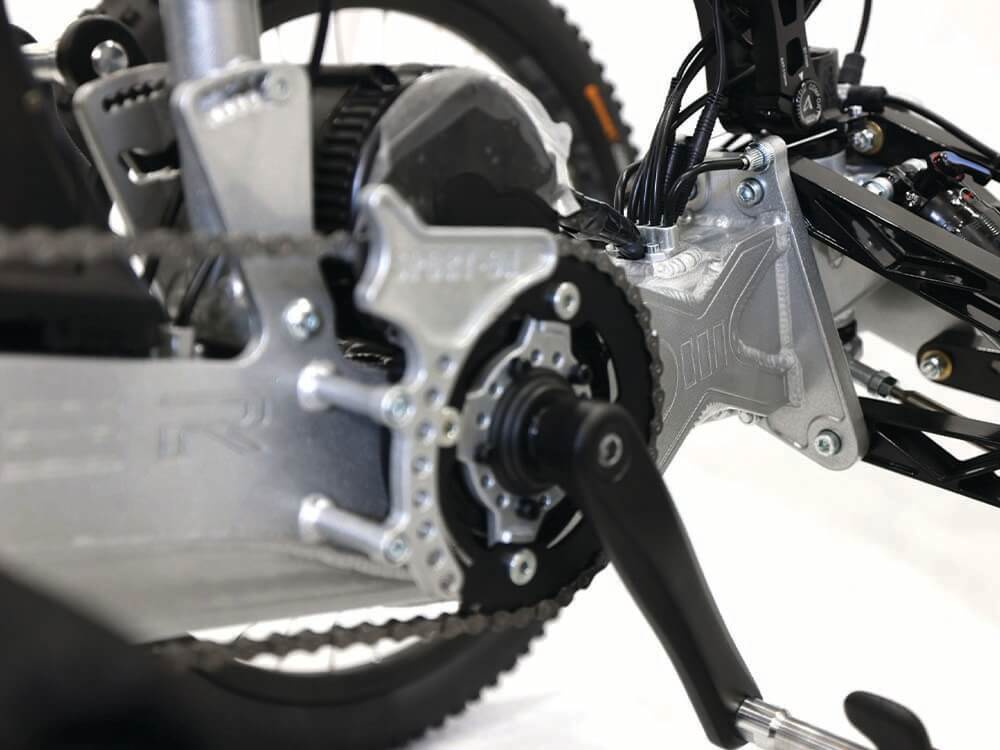

| Cranks | Schlumpf Mountain-Drive 27T 2 gears with reducer |
| Pedals | custom designed, ergonomically shaped |
| Intermediate set of gears | 22T/28T |
| Rear hub | Rohloff Speedhub 500/14 |
| Seat/footrests | carbon, adjustable |
| Chest steering | adjustable (up, down, angle) |
| Handlebar | Amoeba Borla |
| Stem | Amoeba Borla |
| Brakes | Shimano SAINT |
| Brake discs | front 203mm / rear 180mm |
| Wheels | 26″ / 27.5″ to choose |
| Tyres | Continental or Schwalbe |
| Dimensions | L=214cm (depends on wheel size) W=98cm H=70cm |
| Weight | 26 kg (without electric assist) |
