Explorer Ultimate Handcycle
Explorer Ultimate – these two words perfectly capture the essence of this model.
“Explorer” signifies its unique class, while “Ultimate” represents the pinnacle of excellence.
Combining the best of everything from years of experience and heritage, the Explorer Ultimate stands apart. To bring this project to life, the frame was redesigned to accommodate the ÖHLINS suspension, a testament to its superior performance. But it doesn’t stop there.
It also features 27.5″ plus wheels, a Rohloff hub for gearing, and Saint brakes with custom-made Galfer 223mm discs for exceptional control. This powerhouse is driven by a 750W motor, operable via handle or crank in power steering mode. There’s nothing more to add – it’s simply the ultimate.
For more information, contact Adaptive Concepts on 0408 571 190 or complete the enquiry form below.
Handcycle Options:
- SPORT-ON carbon wheels
- Bottle cage
- Main battery
- Front lights
- Safety belt
- Spare battery
- Rear lights
- Safety flag
| Component | Specification |
|---|---|
| Frame | 6082 aluminium alloy |
| Front/Rear suspension | CNC machined |
| Front shock absorbers | ÖHLINS TTX AIR 210×55 |

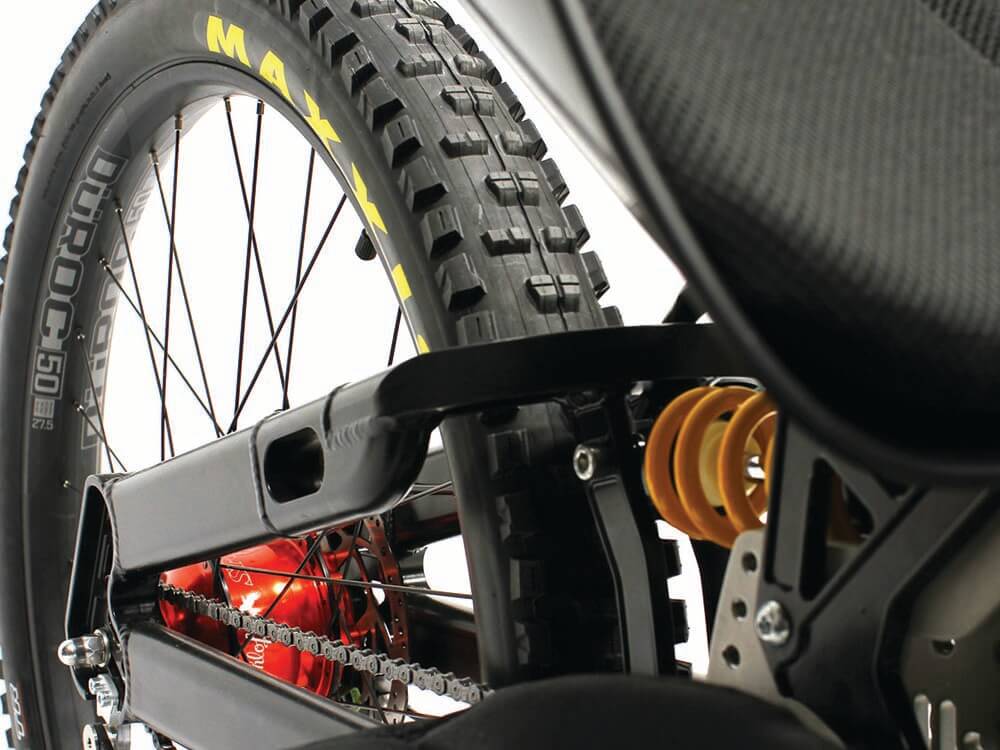

| Rear shock absorber | ÖHLINS TTX22M 250×70 coil spring shock |

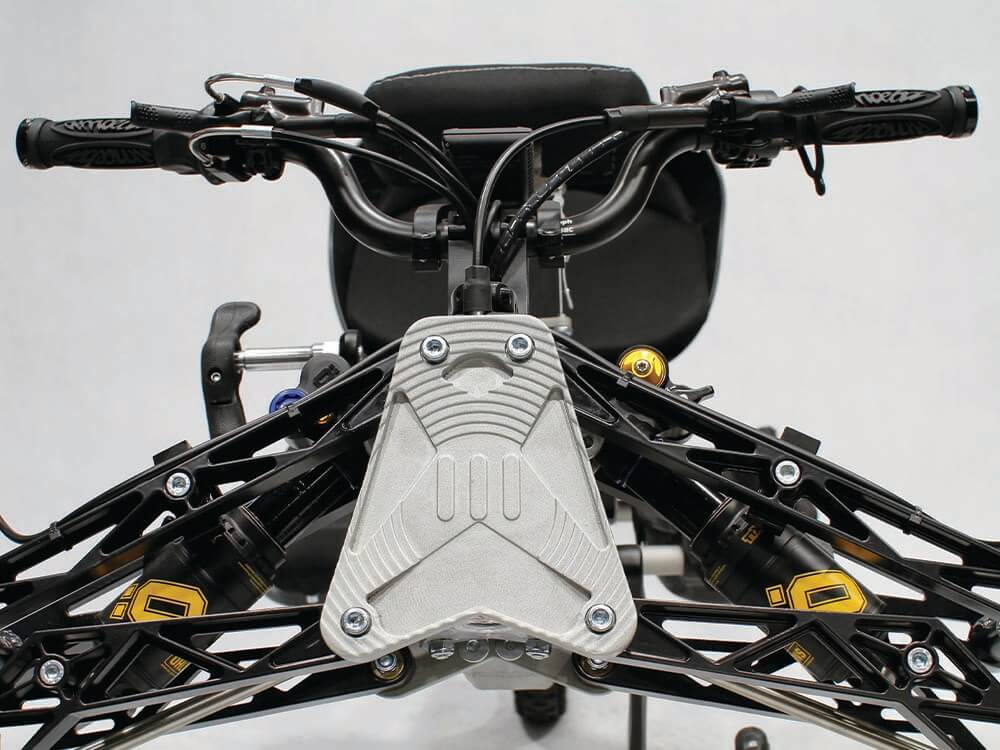

| Steering system | adjustable control arms, pull rods and steering knuckles |
| Drivetrain front | 750W motor (assist mode and throttle) |
| Drivetrain rear | Rohloff Speedhub 500/14 XL FAT |
| Pedals | custom designed, ergonomically shaped |
| Intermediate set of gears | 22T/28T |
| Battery | 12Ah, range 25-100km depending on terrain |
| Seat/footrests | carbon, adjustable |
| Chest steering | adjustable (up, down, angle) |
| Handlebar | Amoeba Borla |
| Stem | Amoeba Borla |
| Brakes | Shimano SAINT |
| Brake discs | Galfer 223mm front / 180mm rear |
| Wheels | 27.5″ |
| Tyres | 3.0″ Continental / Schwalbe / Maxxis depending on availability. |
| Dimensions | L=225 cm W=98cm H=70cm |
| Weight | come on – it’s electric assist! |
